CryptoGuard DVB Conditional Access System
Turn-key DVB CAS with integrated SMS, card-based and cardless clients, and scaling from hundreds to millions of subscribers.

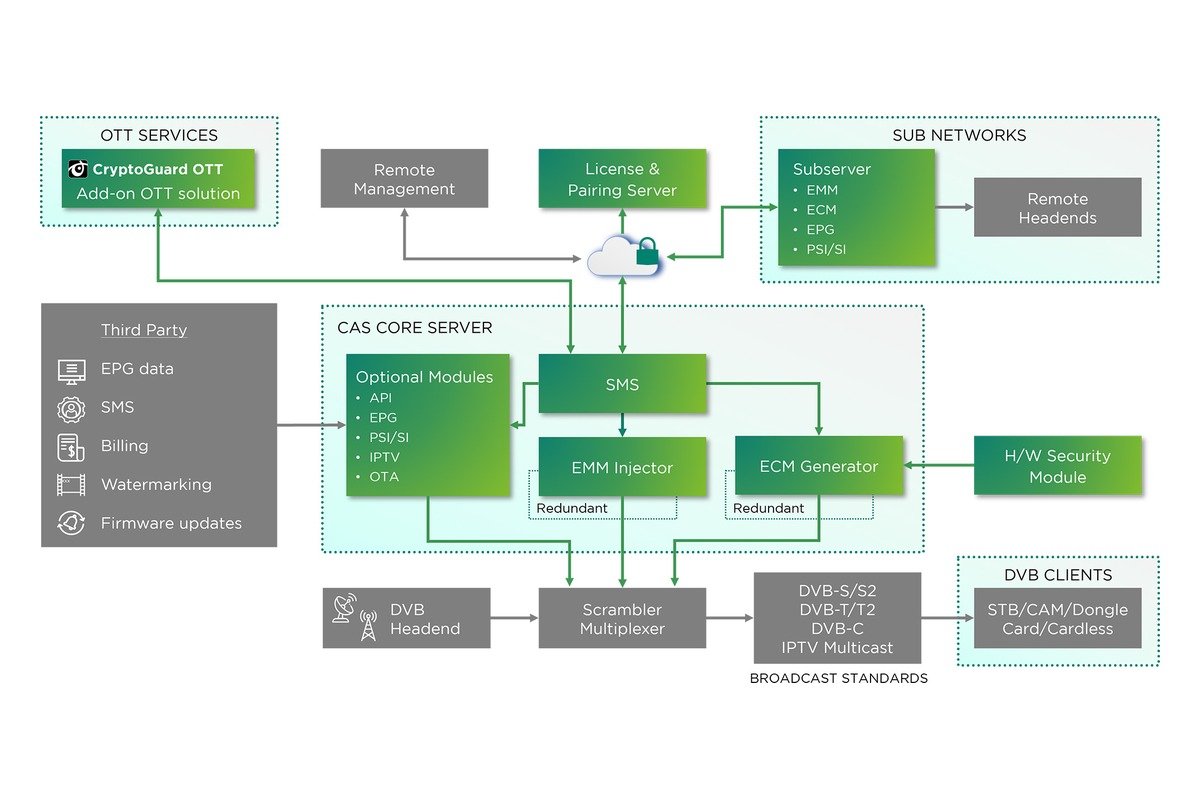

CryptoGuard CAS combines a headend conditional access system with an integrated subscriber management system. It supports DVB-S/S2, DVB-T/T2, DVB-C and DVB-IPTV networks, with card-based and cardless STBs, CAMs and Pay-TV dongles. Security is built around EAL5+ smartcards, secure pairing and a headend hardware security module, backed by a Farncombe audit. We deploy the core server and redundancy, integrate the SMS and EPG/PSI/SI feeds, and commission the client devices.
Technical specifications
- Product type
- Turn-key DVB conditional access system with integrated SMS
- Networks
- DVB-S/S2, DVB-T/T2, DVB-C and DVB-IPTV
- CAS modes
- Card-based and cardless; STB, CAM and Pay-TV dongle clients
- Scale
- From a few hundred to millions of subscribers
- Core server
- CAS core with SMS, EMM injector and ECM generator
- Redundancy
- Redundant EMM and ECM servers with sub-server management
- Security
- EAL5+ smartcards, headend hardware security module and secure pairing
- Chipset security
- Cardless security embedded in major DVB chipsets
- Independent audit
- Farncombe security audit
- Subscriber management
- Web SMS for subscribers, products, devices, reports and billing integration
- Features
- EMM/ECM fingerprinting, force tuning, messaging, OTA and geo-blocking
- Client support
- Zapper, hybrid and Android STBs; CAM up to 16 services; SD/HD/MPEG-2/MPEG-4/HEVC
- Optional modules
- CryptoPLAY OTT and DRM, sub-networks and additional redundancy
- Business model
- Pay-as-you-grow licensing
- Standards
- DVB Simulcrypt, PSI/SI, EPG and OTA
Specifications are indicative and confirmed in the written quotation. Availability varies by model and region; contact us for current lead times.
Integration
Need this specified into a full headend?
Send us the channel list and service definition. We will return a signal chain design, BOM and installation plan.
