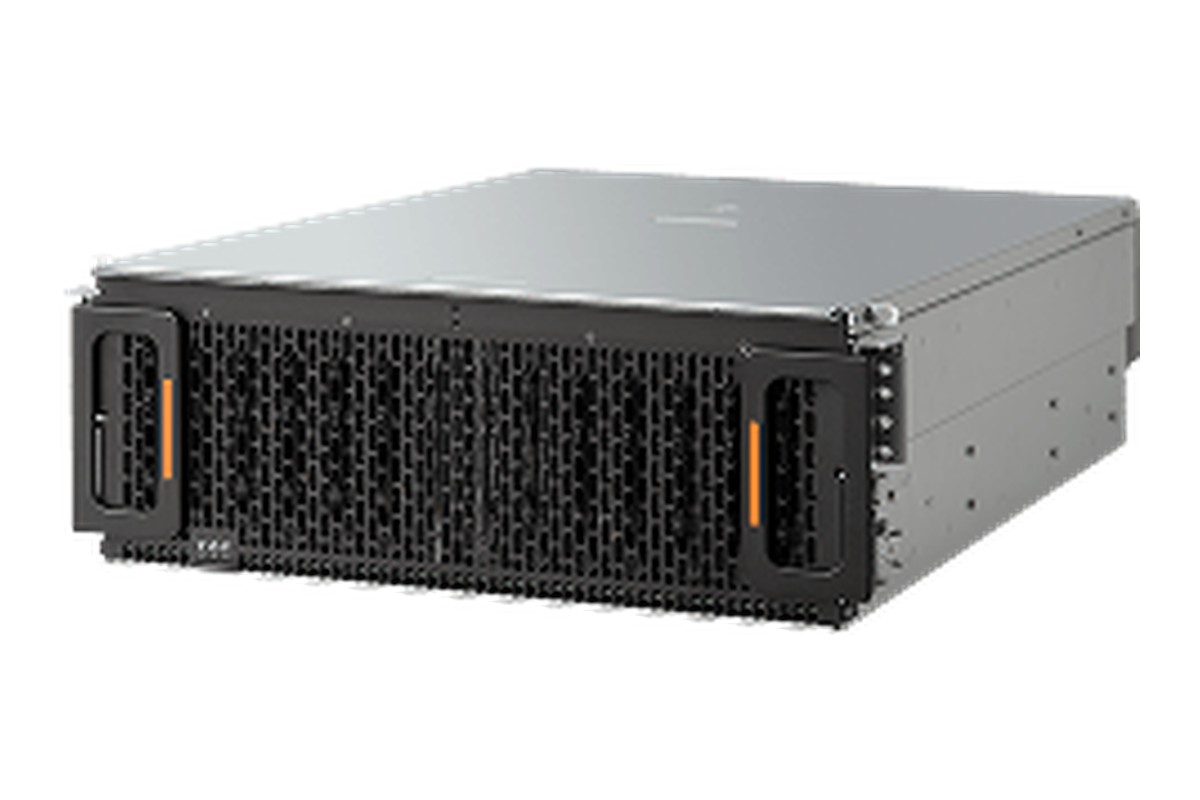

WD Ultrastar Data60 SAS JBOD
4U, 60-bay SAS-4 JBOD for dense SAN and DAS capacity expansion, scaling to 1.92 PB raw.
The Ultrastar Data60 is a 4U enclosure for 60 hot-swap SAS or SATA drives. It is used to add dense capacity behind a SAN controller, ingest server or backup appliance, with dual-port SAS paths, redundant power and cooling, and hot-swap drives. We supply it as an expansion building block for media archives and backup repositories.
Technical specifications
- Form factor
- 4U rack, 60 × 3.5" SAS/SATA bays
- Raw capacity
- Up to 1.92 PB with 60 HDDs
- Drive count
- Minimum 24, maximum 60
- Host interface
- Up to 12 × 24 Gb/s SAS-4
- Drive interface
- Dual-port SAS or single-port SATA
- Management
- Dual I/O modules with SES-2 enclosure services
- Cooling and power
- Dual redundant power and cooling modules
- Dimensions
- 712 × 447 × 174.5 mm
- Weight
- 27.3 kg without drives; 80.67 kg with 60 HDDs
- Operating temperature
- 5–35 °C
- Warranty
- 5-year limited warranty
- Use case
- SAN/DAS capacity expansion, HPC, backup and archive
Specifications are indicative and confirmed in the written quotation. Availability varies by model and region; contact us for current lead times.
