Storage · MSA 2062

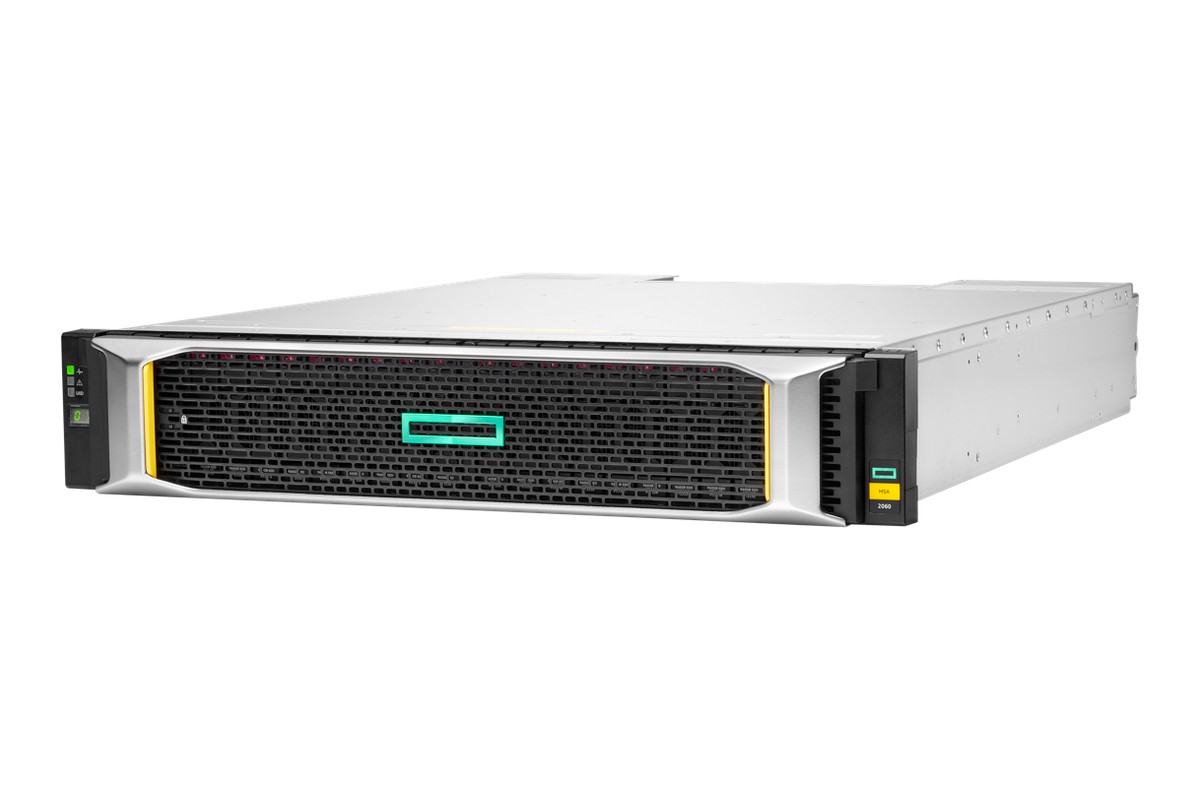

HPE MSA 2062 SAN Array
2U, 24-bay flash-enabled SAN array with dual active/active controllers and an all-inclusive software licence.
The MSA 2062 is a flash-enabled entry SAN for small and remote offices. Each array ships with two read-intensive SSDs and the Advanced Data Services licence, and supports Fibre Channel, iSCSI or SAS host connectivity depending on the model. It is a cost-effective fit for departmental virtualisation, CCTV recording and secondary backup targets.
Technical specifications
- Form factor
- 2U rack, 24 × 2.5" SFF bays; 12 × 3.5" LFF via drive enclosure
- Controllers
- 2 × hot-swappable active/active; 4 host ports each, 8 per array
- Cache
- 24 GB system cache; up to 8 TB read cache
- Host connectivity
- 8/16 Gb Fibre Channel, 10/25 GbE iSCSI, 1/10GBase-T iSCSI or 12 Gb SAS (model dependent)
- Max drives
- 240 SFF, or 24 SFF + 108 LFF with nine enclosures
- Max raw capacity
- 1.83 PB all-SFF; 2.76 PB with LFF enclosures
- RAID levels
- RAID 0 (read cache only), 1, 5, 6, 10 and MSA-DP+
- Data services
- Thin provisioning, snapshots, volume copy, remote snap, auto-tiering and SSD read cache
- Management
- SMU v4 web interface, CLI, RESTful API and MSA Health Check
- Included
- 2 × 1.92 TB read-intensive SSD and Advanced Data Services licence
- Power
- Dual redundant power supplies
- Warranty
- 3-year HPE parts exchange, configurable
Specifications are indicative and confirmed in the written quotation. Availability varies by model and region; contact us for current lead times.
Integration
Need this specified into a full headend?
Send us the channel list and service definition. We will return a signal chain design, BOM and installation plan.
