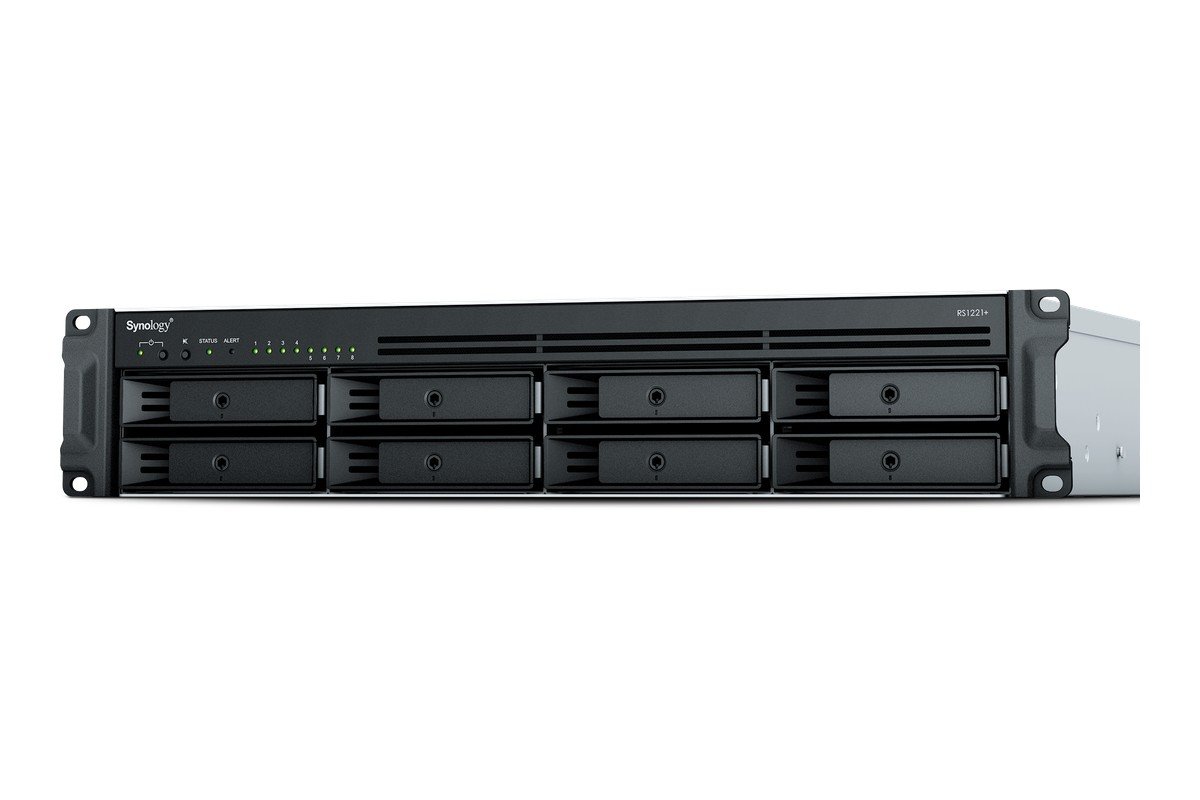

Synology RackStation RS1221+ NAS
Compact 2U, 8-bay rack NAS with ECC memory, 4 × 1GbE and a 10/25GbE expansion slot for file, backup and iSCSI workloads.
The RS1221+ is a shallow-depth 2U NAS built for space-constrained racks. It runs Synology DSM with Btrfs snapshots, Active Backup, Synology Drive and iSCSI targets, and supports Synology High Availability when paired with an identical unit. It suits branch file services, backup repositories, surveillance recording and small virtualisation clusters.
Technical specifications
- Form factor
- 2U rack, 8 × 3.5"/2.5" SATA bays
- CPU
- AMD Ryzen V1500B, 4 cores / 8 threads at 2.2 GHz
- Memory
- 4 GB DDR4 ECC; 2 slots; 32 GB maximum
- Drive bays
- 8; 12 with RX418 expansion unit
- Network
- 4 × 1GbE; 1 × PCIe Gen3 x8 slot for 10/25GbE
- Other ports
- 2 × USB 3.2 Gen 1; 1 × eSATA expansion
- RAID
- Synology Hybrid RAID, Basic, JBOD, RAID 0/1/5/6/10
- File system
- Btrfs or ext4; maximum single volume 108 TB
- Protocols
- SMB, NFS, iSCSI, AFP, FTP, WebDAV and Rsync
- Performance
- Up to 2,315 MB/s sequential read and 1,147 MB/s write with 10GbE
- Power
- 250 W PSU; 49.89 W access, 22.64 W hibernation
- Dimensions
- 88 × 482 × 306.6 mm; 6.9 kg
- Warranty
- 3-year hardware warranty, extendable to 5 years
Specifications are indicative and confirmed in the written quotation. Availability varies by model and region; contact us for current lead times.
