Storage · DS1823xs+

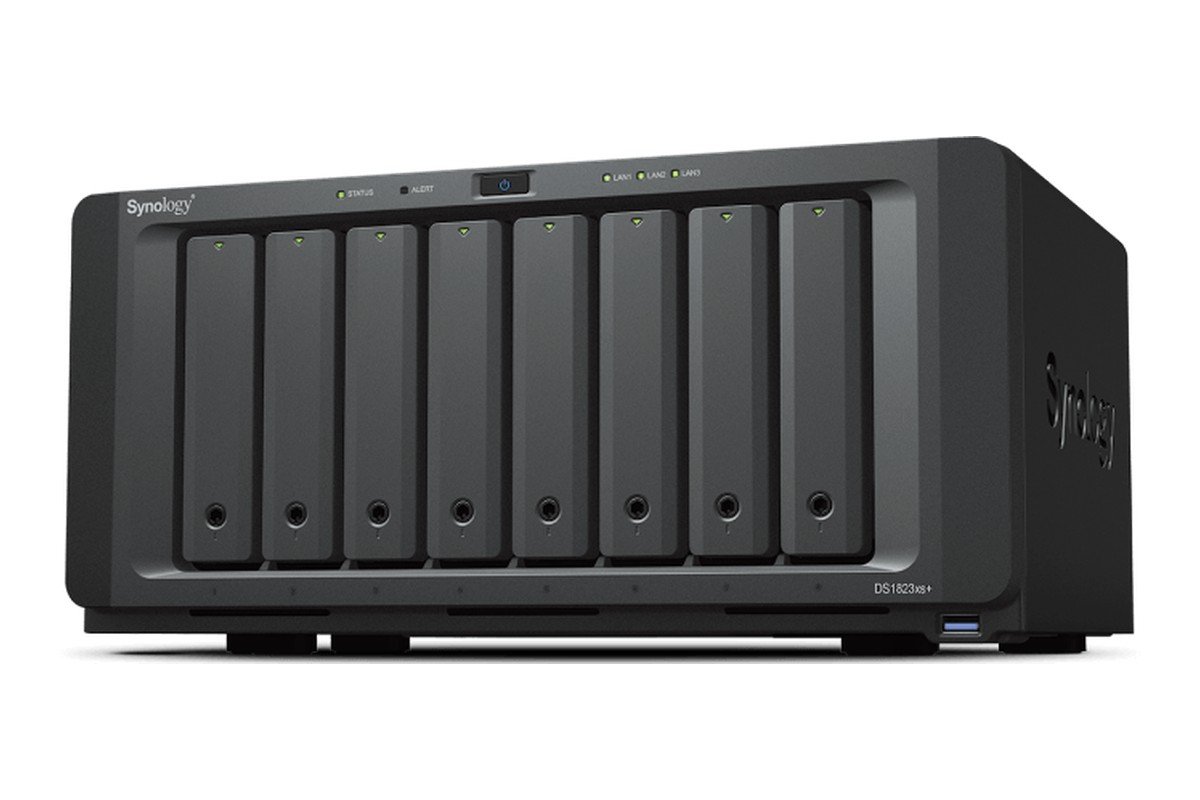

Synology DiskStation DS1823xs+ NAS
8-bay desktop NAS with built-in 10GbE, ECC memory, dual M.2 NVMe slots and expansion to 18 bays.
The DS1823xs+ is a desktop power NAS for offices without a rack. It pairs eight 3.5-inch bays with two M.2 NVMe slots, built-in 10GbE and out-of-band management, and scales to 18 bays with two DX517 expansion units. It is suited to central file services, endpoint and VM backup, private cloud and surveillance with up to 75 cameras.
Technical specifications
- Form factor
- Desktop, 8 × 3.5" SATA bays + 2 × M.2 2280 NVMe slots
- CPU
- AMD Ryzen V1780B, 4 cores / 8 threads, 3.35 GHz base / 3.6 GHz turbo
- Memory
- 8 GB DDR4 ECC; 2 slots; 32 GB maximum
- Drive bays
- 8; 18 with 2 × DX517 expansion units
- Network
- 2 × 1GbE, 1 × 10GbE and 1 × out-of-band management
- Other ports
- 3 × USB 3.2 Gen 1; 2 × eSATA; 1 × PCIe Gen3 x8
- RAID
- Synology Hybrid RAID, RAID F1, Basic, JBOD, RAID 0/1/5/6/10
- File system
- Btrfs or ext4; maximum single volume 200 TB with 32 GB memory
- Protocols
- SMB, NFS, iSCSI, Fibre Channel, AFP, FTP, WebDAV and Rsync
- Performance
- Up to 3,100 MB/s sequential read and 2,600 MB/s write
- Power
- 250 W PSU; 87.93 W access, 28.37 W hibernation
- Dimensions
- 166 × 343 × 243 mm; 6.2 kg
- Warranty
- 5-year limited hardware warranty
Specifications are indicative and confirmed in the written quotation. Availability varies by model and region; contact us for current lead times.
