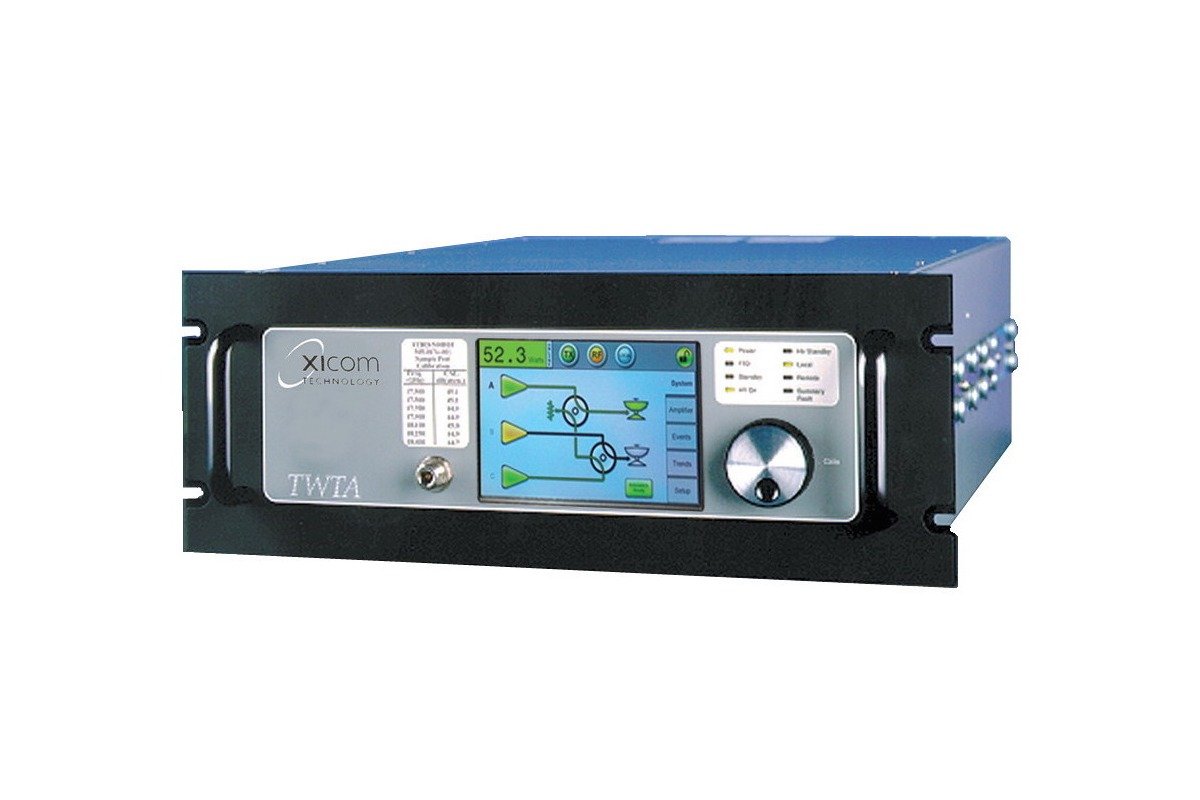

Xicom XTRT-750C C-Band 750 W Rack HPA
750 W C-band rack-mount TWTA for teleport and broadcast uplink racks.
The Xicom XTRT-750C is a 750 W C-band rack-mount TWTA for 5.85–6.425 GHz uplinks. It provides a front-panel display, remote monitoring and protection, and can be integrated into 1+1 or N+1 redundant HPA systems.
Technical specifications
- Band
- C-band
- Output power
- 750 W
- RF frequency
- 5.85–6.425 GHz
- Gain
- 70 dB
- RF interface
- WR-137 waveguide
- Form factor
- Rack-mount, 19-inch
- Control
- Front panel, remote monitor/control
- Monitoring
- Forward/reflected power, helix current and alarms
- Protection
- VSWR, over-temperature, over-current and HV interlocks
- Power
- 208–240 VAC
- Cooling
- Forced air
- Redundancy
- 1+1 or N+1 with external controller
Specifications are indicative and confirmed in the written quotation. Availability varies by model and region; contact us for current lead times.
