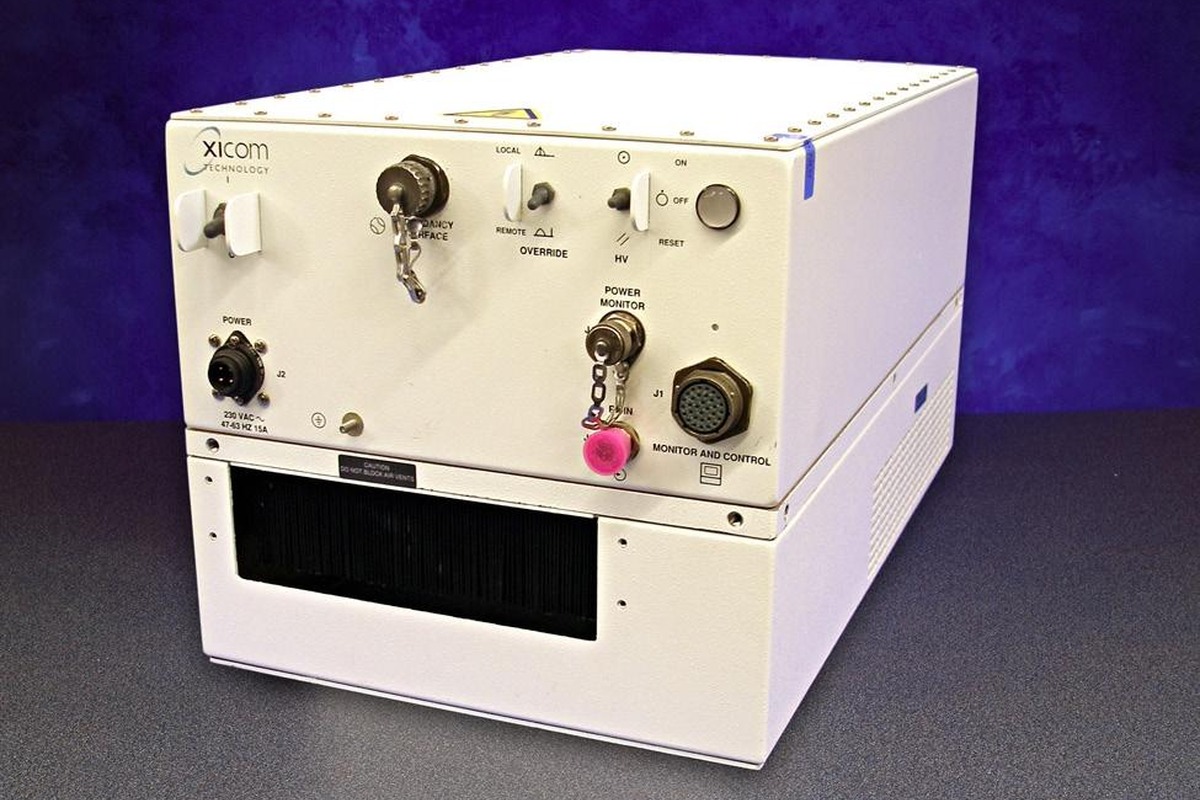

Xicom XTD-750K Ku-Band 750 W HPA
750 W Ku-band antenna-mount TWTA for high-power broadcast and teleport uplinks.
The Xicom XTD-750K is a 750 W Ku-band antenna-mount travelling-wave tube amplifier for 13.75–14.5 GHz uplinks. It provides local and remote control, forward/reflected power monitoring and full protection in a weatherproof outdoor housing.
Technical specifications
- Band
- Ku-band
- Output power
- 750 W
- RF frequency
- 13.75–14.5 GHz
- Gain
- 70 dB
- RF interface
- WR-75 waveguide
- Mounting
- Antenna-mount outdoor housing
- Control
- Local panel and remote monitor/control
- Monitoring
- Forward/reflected power, helix current and alarms
- Protection
- VSWR, over-temperature, over-current and HV interlocks
- Power
- 100–260 VAC, 47–63 Hz
- Cooling
- Forced air
- Temperature
- −40 to +55 °C
Specifications are indicative and confirmed in the written quotation. Availability varies by model and region; contact us for current lead times.
