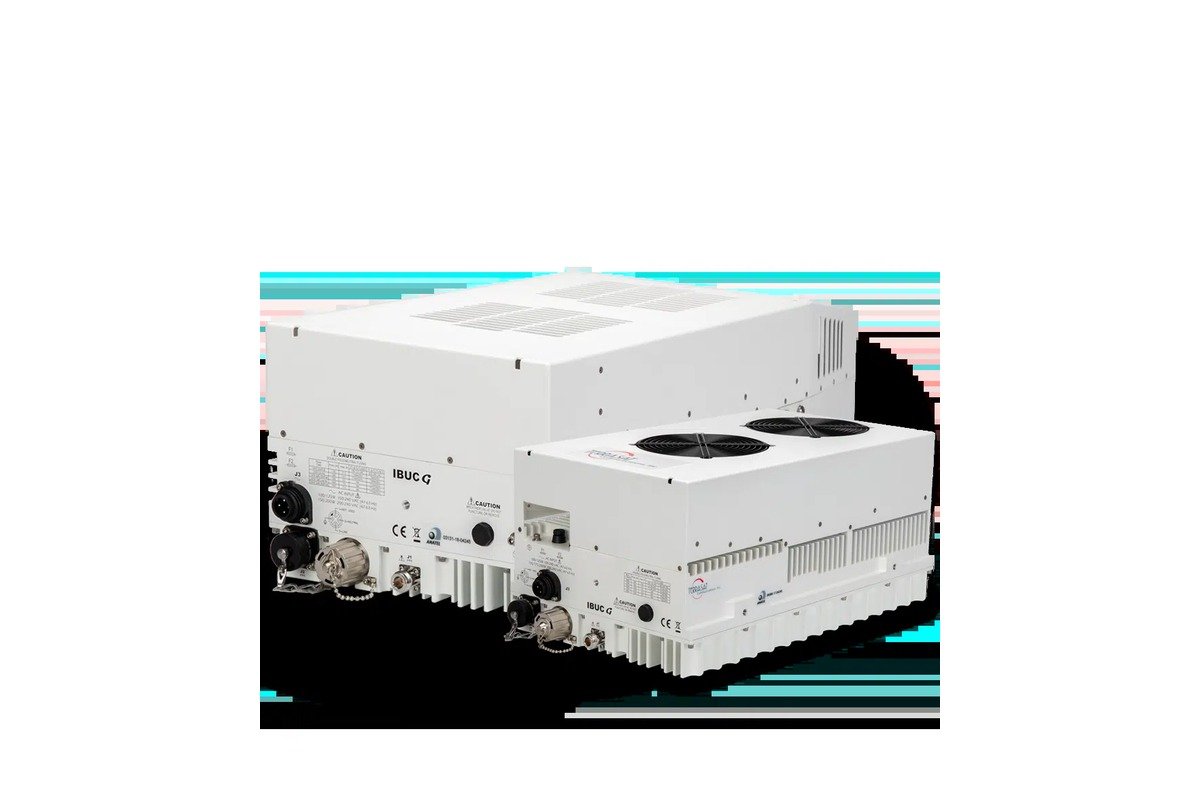

Terrasat IBUC G C-Band 200 W BUC
200 W GaN C-band intelligent BUC for multicarrier teleport and broadcast uplinks.
The Terrasat IBUC G is a 200 W GaN C-band block up converter for 5.85–6.425 GHz uplinks. It integrates the upconverter, amplifier and monitor/control in a weatherproof outdoor unit and supports multicarrier operation with high linearity.
Technical specifications
- Band
- C-band
- Technology
- GaN
- Output power
- 200 W
- RF frequency
- 5.85–6.425 GHz
- IF frequency
- 950–1525 MHz
- Local oscillator
- 4.9 GHz
- Gain
- 70 dB
- RF output
- WR-137 waveguide
- IF connector
- N-type
- Power
- 48 VDC
- Monitoring
- Ethernet/SNMP and serial monitor/control
- Environmental
- Weatherproof outdoor housing
Specifications are indicative and confirmed in the written quotation. Availability varies by model and region; contact us for current lead times.
