Feedhorns · OV-FH-KU

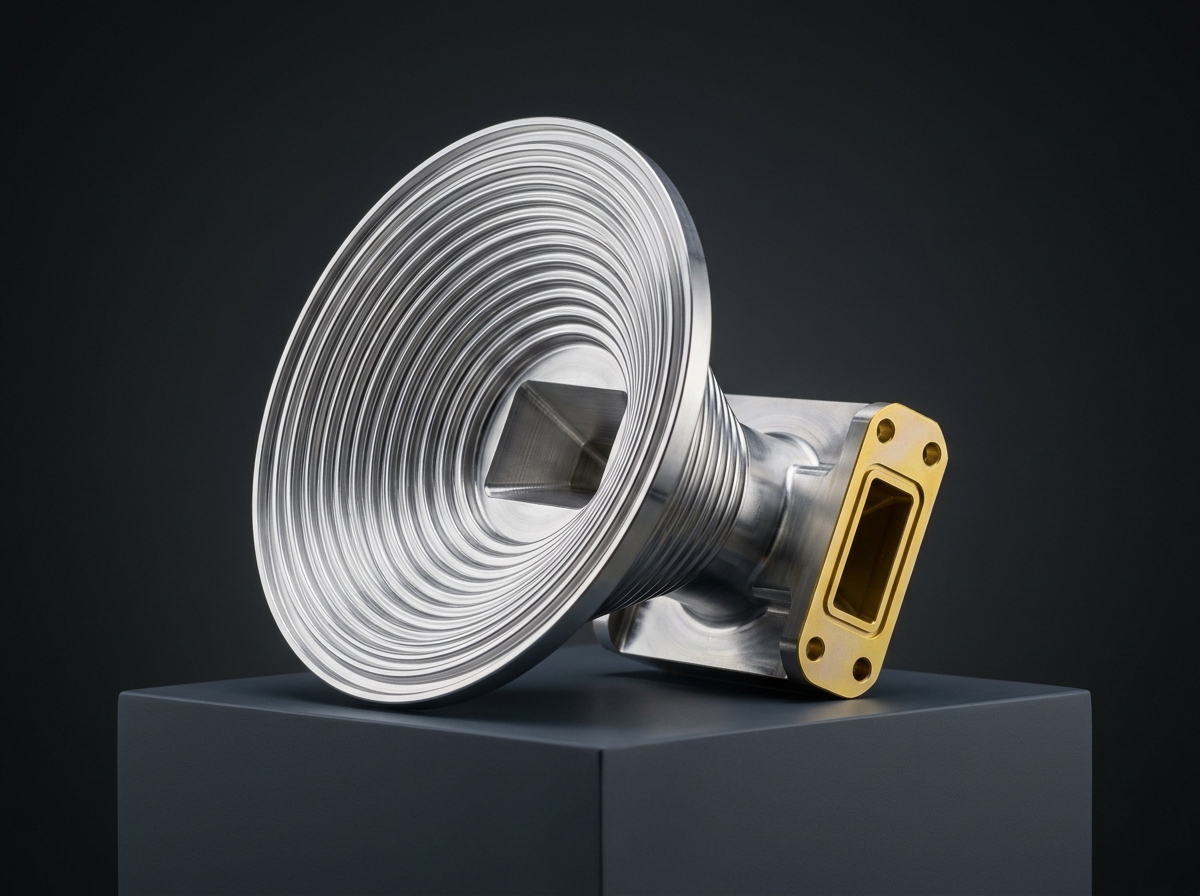

Ku-Band Feedhorn
Precision-machined Ku-band feedhorn for receive and transmit antenna systems.
The OV-FH-KU is a dual-polarisation Ku-band feedhorn for VSAT, SNG and broadcast receive/transmit antennas. It provides high port isolation, low return loss and stable phase centre across the operating band, with flange options to match common Ku waveguide interfaces.
Technical specifications
- Band
- Ku: 10.7–12.75 GHz receive / 13.75–14.5 GHz transmit
- Polarisation
- Dual linear, orthogonal
- Ports
- Separate receive and transmit waveguide ports
- Return loss
- > 20 dB across the band
- Port isolation
- > 30 dB
- Flange
- CPR/UG and PDR options
- Material and finish
- Aluminium with chromate conversion and painted finish
- Environmental
- −40 to +70 °C; weatherproof
- Mounting
- Prime-focus or offset feed support
- Options
- Receive-only or transmit/receive configurations
Specifications are indicative and confirmed in the written quotation. Availability varies by model and region; contact us for current lead times.
