HPAs & BUCs · OV-HPA-RD

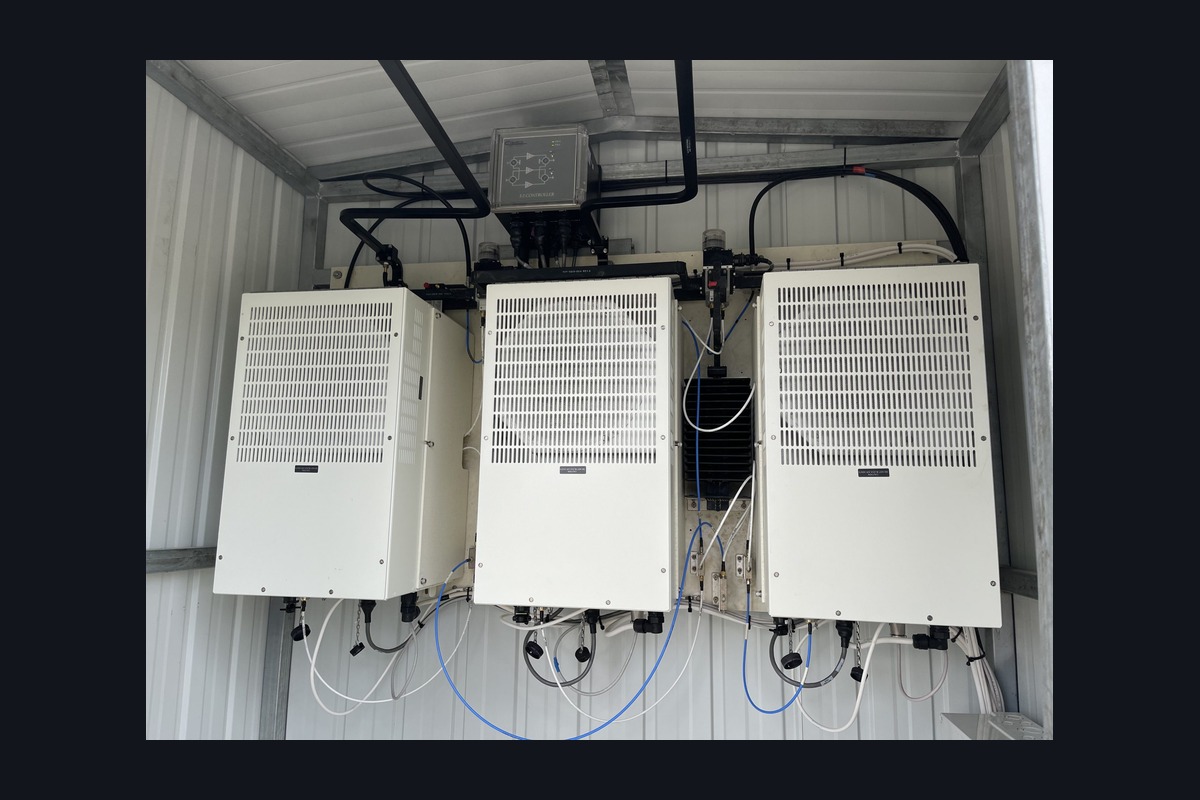

1+1 Redundant HPA System
Hot-standby 1+1 or N+1 HPA system with automatic switchover for C, Ku or Ka-band uplinks.
The OV-HPA-RD packages two or more HPAs with a redundant switch controller, power splitting and monitoring in a single rack system. It provides automatic or manual switchover, alarm reporting and remote control for teleport and broadcast uplinks that cannot tolerate a single amplifier failure.
Technical specifications
- Configuration
- 1+1 or N+1 hot standby
- Bands
- C, Ku or Ka-band
- Output power
- 200 W–1 kW per amplifier
- Switchover
- Automatic or manual
- Transfer time
- < 10 ms
- Control
- SNMP, RS-485 and local panel
- Monitoring
- Amplifier status, forward/reflected power and alarms
- Mechanical
- 19-inch rack with integrated controller
- Power
- 48 VDC
- Options
- Remote monitoring and dual-feed configurations
Specifications are indicative and confirmed in the written quotation. Availability varies by model and region; contact us for current lead times.
