Professional LNBs · OV-5GF-38

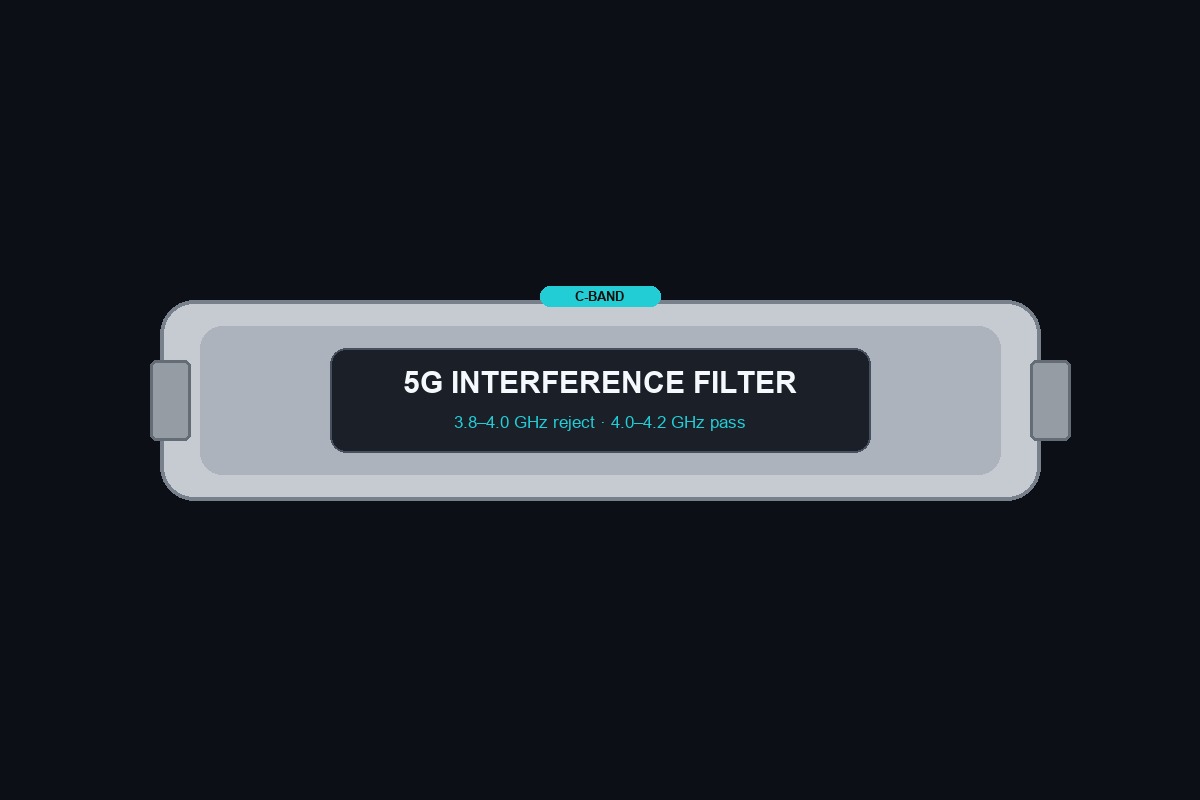

C-Band 5G Interference Filter 3.8–4.0 GHz
Inline C-band filter that rejects 3.8–4.0 GHz 5G energy while passing 4.0–4.2 GHz.
The OV-5GF-38 is a C-band receive filter for operators whose wanted carriers sit above the 5G allocation. It rejects 3.8–4.0 GHz and passes 4.0–4.2 GHz, protecting LNBs and receivers from overload and intermodulation.
Technical specifications
- Passband
- 4.0–4.2 GHz
- Stopband
- 3.8–4.0 GHz
- Insertion loss
- < 0.6 dB in passband
- Rejection
- > 40 dB in stopband
- Impedance
- 75 Ω
- Connectors
- F-type female input/output
- Power handling
- Receive-chain power levels
- Environmental
- Indoor or weatherproof outdoor housing
- Mounting
- Inline between feed/LNB and receiver
- Options
- Type-N connectors and rack-mount versions
Specifications are indicative and confirmed in the written quotation. Availability varies by model and region; contact us for current lead times.
