Professional LNBs · OV-5GF-37

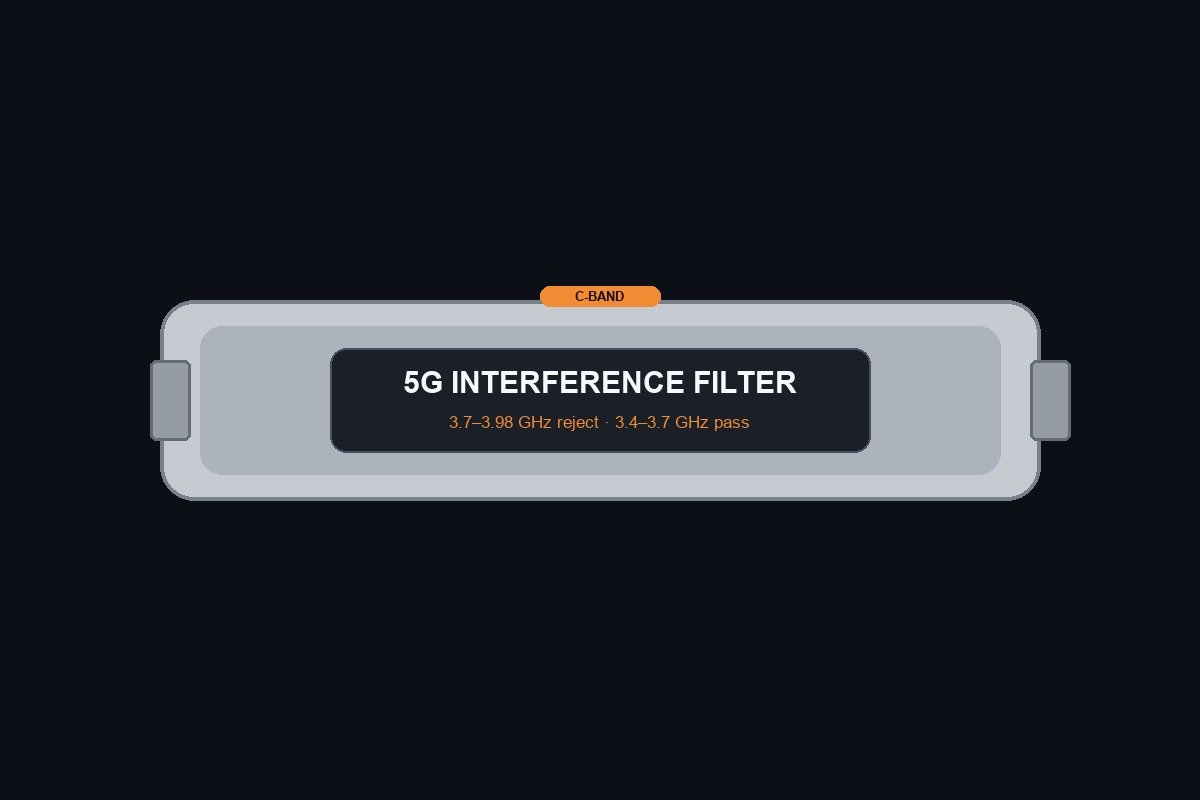

C-Band 5G Interference Filter 3.7–3.98 GHz
Inline C-band bandpass filter that rejects 3.7–3.98 GHz 5G energy while passing 3.4–3.7 GHz.
The OV-5GF-37 is an inline 5G interference filter for C-band receive chains. It rejects the 3.7–3.98 GHz 5G downlink band with high stopband attenuation and low insertion loss in the passband, and connects between the feedhorn and LNB or between the LNB and receiver.
Technical specifications
- Passband
- 3.4–3.7 GHz
- Stopband
- 3.7–3.98 GHz
- Insertion loss
- < 0.6 dB in passband
- Rejection
- > 40 dB in stopband
- Impedance
- 75 Ω
- Connectors
- F-type female input/output
- Power handling
- Receive-chain power levels
- Environmental
- Indoor or weatherproof outdoor housing
- Mounting
- Inline between feed/LNB and receiver
- Options
- Type-N connectors and rack-mount versions
Specifications are indicative and confirmed in the written quotation. Availability varies by model and region; contact us for current lead times.
