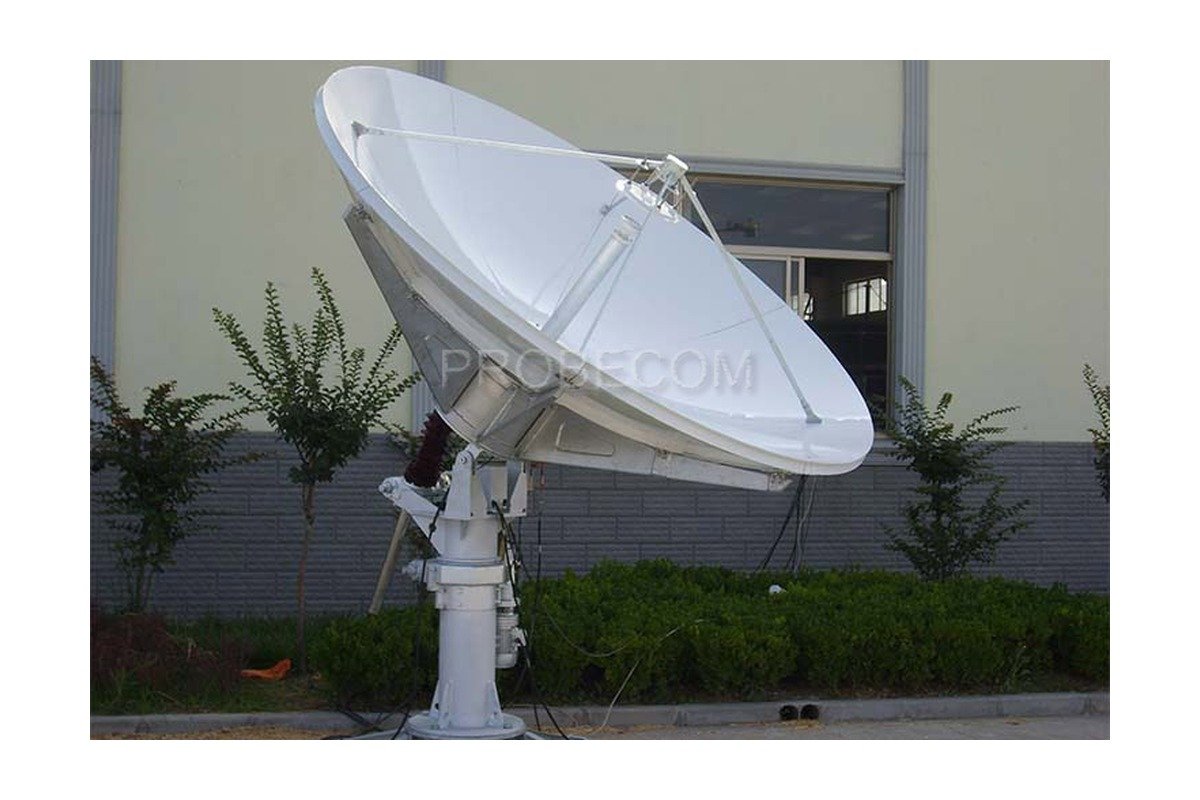

2.4 m Ku/Ka VSAT Antenna
2.4 m fixed Ku/Ka VSAT antenna for enterprise and broadcast receive/transmit terminals.
The OV-ANT-2.4 is a 2.4 m fixed earth-station antenna for Ku and Ka VSAT services. It offers a robust pedestal mount, optional motorisation and a weatherproof feed system for continuous outdoor operation.
Technical specifications
- Reflector
- 2.4 m offset-fed
- Bands
- Ku and Ka
- Receive gain
- Ku 48 dBi; Ka 55 dBi
- Transmit gain
- Ku 50 dBi; Ka 58 dBi
- G/T
- 27 dB/K at Ku
- Polarisation
- Linear or circular feed options
- Elevation
- 5–90°
- Azimuth
- 360°
- Wind
- Operational to 100 km/h
- Drive
- Fixed; motorised option
- Mount
- Pedestal or roof frame
- Options
- Motor drive, de-ice and redundant feed
Specifications are indicative and confirmed in the written quotation. Availability varies by model and region; contact us for current lead times.
